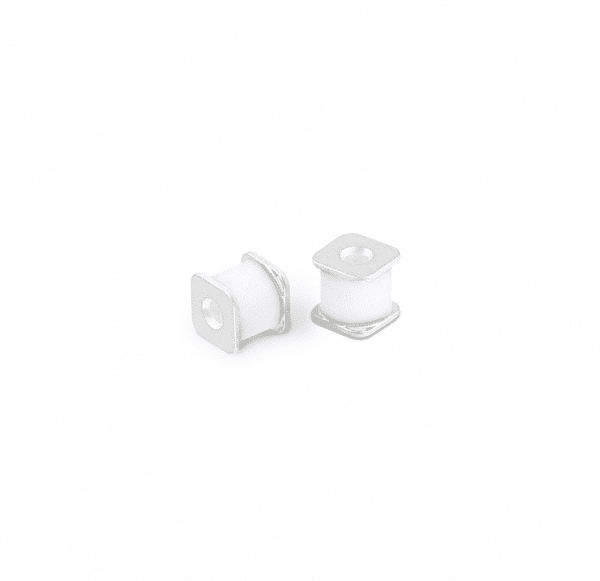

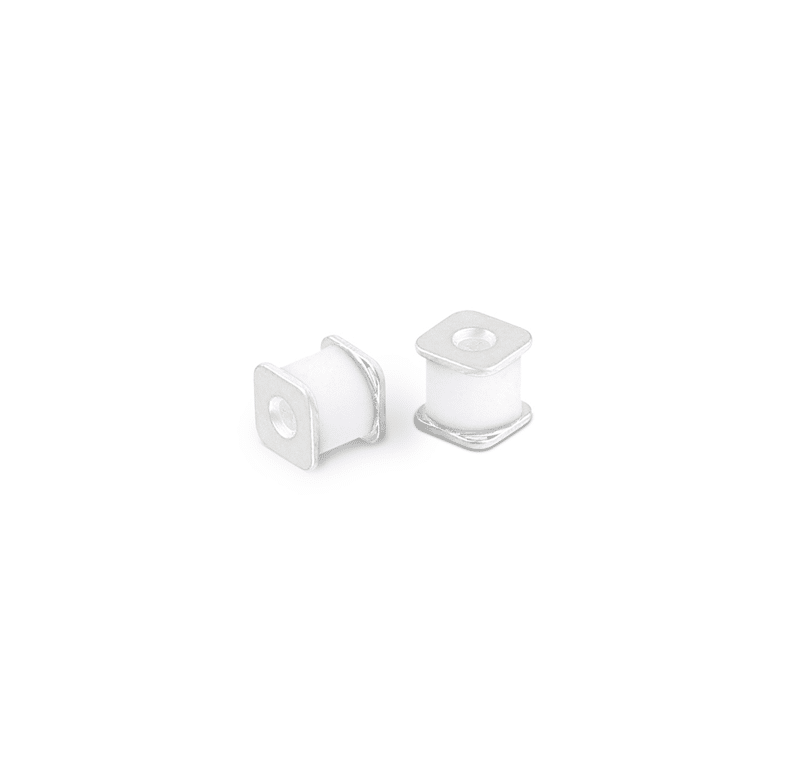

Two-pole Gas Discharge Tubes 2R-6S series

(1 customer review)

Features of Two-pole Gas Discharge Tubes 2R-6S series:

Excellent response to fast rising transients
Stable breakdown voltage
GHz working frequency
8/20μs Impulse current capability: 5KA
Surface Mount package
Non-Radioactive
Ultra Low capacitance (<1.0pF)
Lead-free and RoHS compliant
Size: 4.2mm*6mm*6mm

Applications of Two-pole Gas Discharge Tubes 2R-6S series:

CATV equipment
Antennas
RS 485
Telecom Base Station
Power Supply AC Main
EV power Charging
Inverter/Variable
Frequency Drivers (VFDs)
IEEE 802.3 compliant Ethernet interfaces
Broad Band equipment
xDSL, ADSL, ADSL2, VDSL, and VDSL2
Medical Electronics
Test Equipment
General Telecom Equipment
Renewable Energy



Description

The two-pole SMD 2R-6S series ceramic gas discharge tube is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance value and strong current flow capacity. Volume: 6.2×6.2×4.2mm, voltage range: 75-800V,8/20μs waveform can withstand 5kA surge energy.
