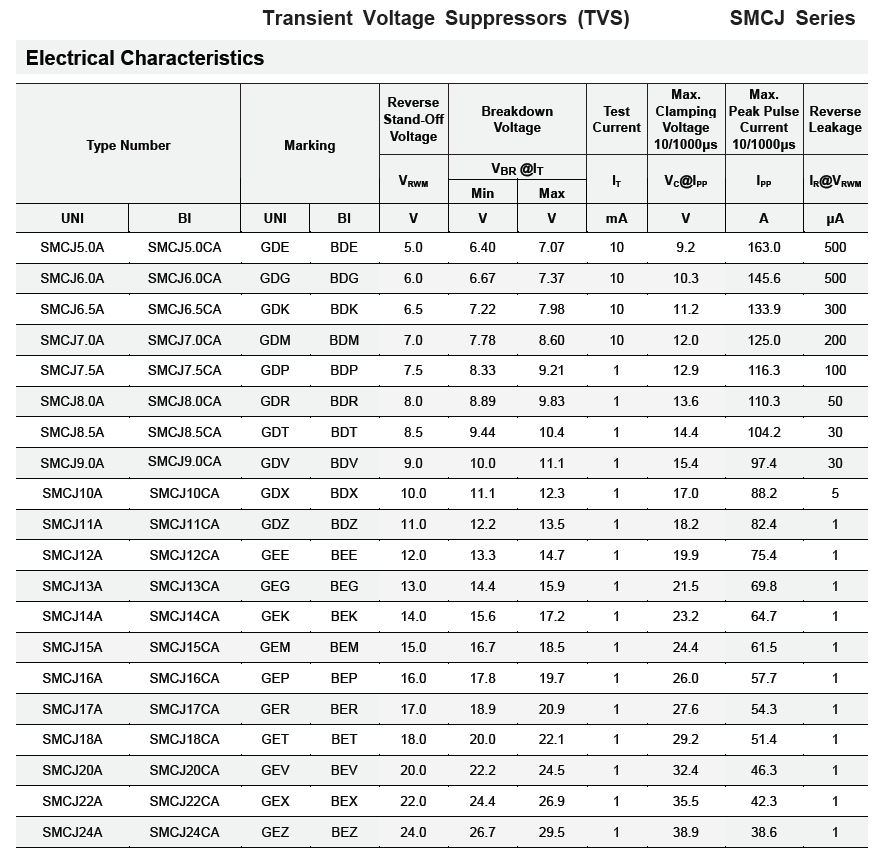

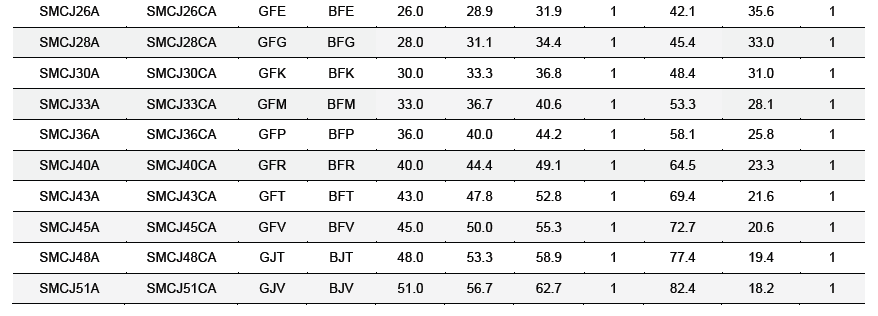

Description of 1500W SMD Transient Voltage Suppressors Diodes SMCJ Series
The 1500W SMD Transient Voltage Suppressors Diodes SMCJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features of 1500W SMD Transient Voltage Suppressors Diodes SMCJ Series
Low profile package
Very fast response time
Halogen free and RoHS compliant
Low incremental surge resistance
Typical IR less than 1μA above 10V
For surface mounted applications to optimize board space
Compatible with industrial standard package DO-214AB
1500W peak pulse power capability with at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
High temperature soldering:260°C/ 10 seconds at terminals
The 1500W SMD Transient Voltage Suppressors Diodes SMCJ Series are used in computer systems, communication equipment, and suitable for the protection of DC Port, RS485/232/422, I/O Port and other ports. It has fast response time and transient High power, low leakage current, breakdown voltage deviation, easy control of clamping voltage, no damage limit, high reliability, strong current capacity, small size and other advantages, package: SMC/DO-214AB, voltage range: 5.0～440V.
