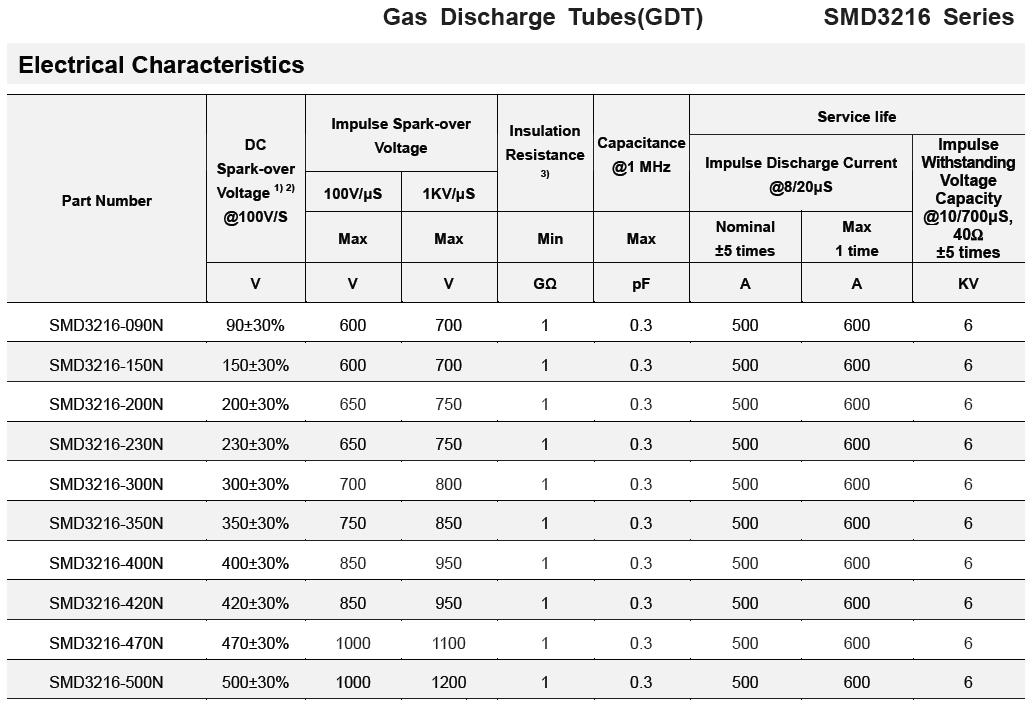

Features of Two-pole Gas Discharge Tubes SMD3216 series:
Excellent response to fast rising transients
Stable breakdown voltage
GHz working frequency
8/20μs Impulse current capability: 500A
Surface Mount package
Non-Radioactive
Ultra Low capacitance(<0.3pF) and insertion loss
Lead-free and RoHS compliant
UL 497B Recognized: E465335
Very Small Size(EIA 1206)
Storage and operational temperature: -40~+90°C
Applications of Two-pole Gas Discharge Tubes SMD3216 series:
Ethernet, PoE, xDSL
Cable modem, splitters, line cards
Wireless antenna protection
CATV equipment
Switching power supply
The two-pole SMD3216 series ceramic gas discharge tube is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products has the characteristics of small size, low capacitance value and strong current flow capacity. Volume: 3.2×1.6×1.6mm, voltage range: 90～600V, 8/20μs waveform can withstand 0.5kA surge protection.
