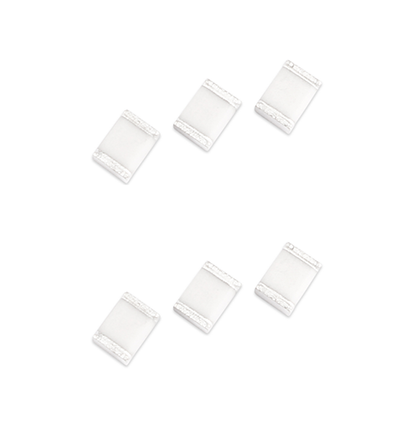

Two-pole Gas Discharge Tubes SMD3225 series

(1 customer review)

Features of Two-pole Gas Discharge Tubes SMD3225 series:

Excellent response to fast rising transients
Stable breakdown voltage
GHz working frequency
8/20μs Impulse current capability: 1KA
Surface Mount package
Non-Radioactive
Ultra Low capacitance(<0.5pF) and insertion loss
Lead-free compliant
RoHS and REACH compliant
Very Small Size(EIA 1210)
Storage and operational temperature: -40~+90°C

Applications of Two-pole Gas Discharge Tubes SMD3225 series:

Communication equipment
CATV equipment
Test equipment
Data lines
Power supplies
Telecom SLIC protection
Broadband equipment
ADSL equipment, including ADSL2+
XDSL equipment
Satellite and CATV equipment
General telecom equipment

Description

The two-pole SMD3225 series ceramic gas discharge tube is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance value and strong current flow capacity. Volume: 3.2×2.5×2.5mm, voltage range: 75~800V, 8/20μs waveform can withstand 1kA surge energy.

Two-pole Gas Discharge Tubes SMD3225 series
