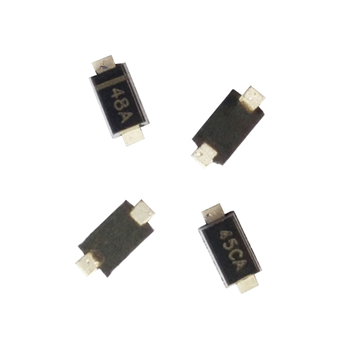

Description of 200W SMD Transient Voltage Suppressors Diodes SMFJ Series
The 200W SMD Transient Voltage Suppressors Diodes SMFJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SOD-123FL package is 50% smaller in footprint when compare to SMA package and delivering low height profile (1.1mm) in the industry.
Features of 200W SMD Transient Voltage Suppressors Diodes SMFJ Series
Fast response time
Built-in strain relief
Low incremental surge resistance
Matte tin lead–free Plated
Halogen free and RoHS compliant
For surface mounted applications to optimize board space
Compatible with industrial standard package SOD-123FL
200W peak pulse power capability with at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
High temperature soldering: 260°C/10 seconds at terminals
The 200W SMD Transient Voltage Suppressors Diodes SMFJ Series are used in computer systems, communication equipment, and suitable for the protection of DC Port, RS485/232/422, I/O Port and other ports. It has fast response time and transient power. Large, low leakage current, breakdown voltage deviation, easy control of clamping voltage, no damage limit, high reliability, strong current capacity, small size, etc., package: SOD-123, voltage range: 5～220V.
